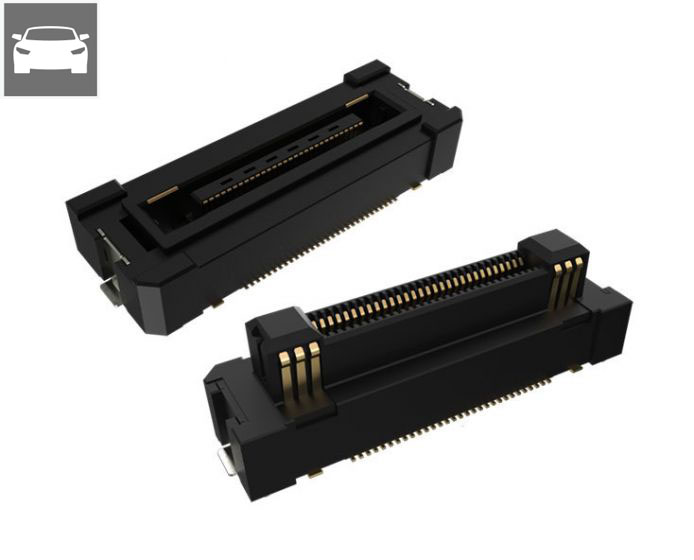

FloatCombo? 0.50mm Floating Board-to-Board Connectors with Power Pin
高速大電流電源插針板對板連接器
0.50毫米間距電源插針浮動型板對板連接器系統專為需要大電流和節省空間的應用場景而設計。
采用獨立電源插針，每插針載流能力為5A（電源插針*4），并支持高達10Gb/s或16Gb/s的高速傳輸速率。
● 高速傳輸：10Gb/s(SH≤15mm), 16Gb/s(SH>15mm)
● 每電源插針的額定電流高達5A（5A/插針*4）
● 支持-55°C至125°C的寬工作溫度范圍（包括溫升情況下）
● 浮動范圍大，SH≤15mm: X,Y±0.60mm, Z±0.50mm,SH>15mm: X,Y±0.80mm, Z±0.60mm
● 采用防呆配接設計
● 采用導向設計，方便配接
● 符合USCAR-2 T3V2標準
-
圖紙 -
規格書 -
3D圖紙
-
