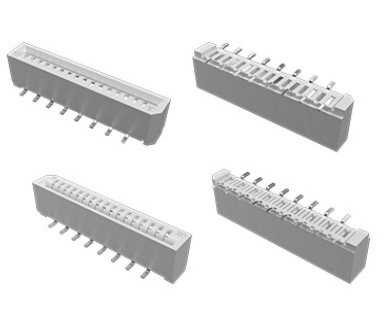

HRS-F52L/HRS-F52M series are 1.00mmpitch vertical Non-ZIF flex connectorswith surface mount termination and nolocking mechanism. F52L and F52M arevertical A-Type and B-Type respectively. Theseconnectors feature a height of 5.04mm andcomes in 4 to 30 contacts. This series features acable thickness of 0.30mm and provides enhanceddurability of 30 mating cycles. The connectorscome with a robust design and preventsolder and flux wicking. These are ideal forautomotive, data, industrial, communication,communication, consumer and medical applications.
■ Single action lonsumer and medical applicatiw-forcons.e FFC/FPC insertion and removal
■ Ensures high solderability and durability
■ Wide operating temperature range of -40'c to +105°C
-
